What's an Electric Butterfly Valve?

Electric Butterfly Valve, or also called as Butterfly Valve actuator, Electric Butterfly Valve, Electric actuated butterfly valve, Motorized Butterfly Valve, Electrical operated butterfly valve is a compact design to control the flow of gas or liquid by means of a disk, which turns on a diametrical axis inside a pipe permitting the flow in only one direction and offers a rotary stem movement of 90 degrees.

HANTS Electric Butterfly Valves, model BPW, has complied with IP66 protection, water-proof and dust-proof design, especially suitable for chemical industry or pure water system. The PVC, PP Butterfly valve is anti-corrosive material, which is good for special chemicals. Suitable for working temperature -10°C ~ 50°C.

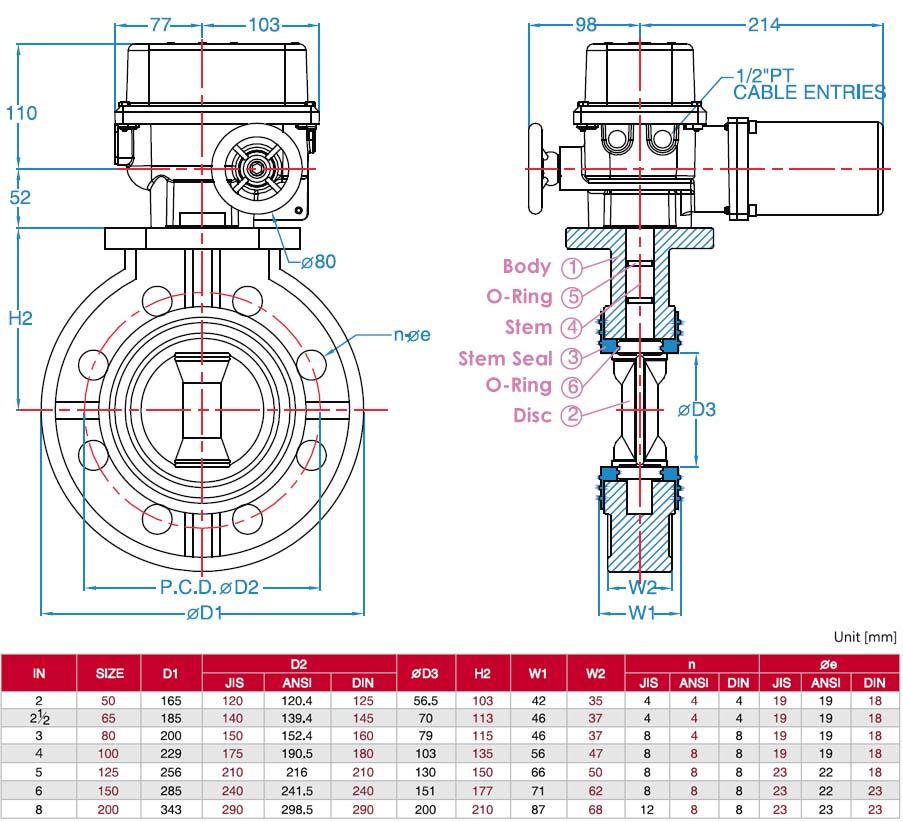

▲ Electric Butterfly Valve Structure Diagram

Features of electric butterfly valves for chemical industry

◆ Good for chemical industry or pure water equipment.

◆ Water type butterfly valve in PVC, PP, PVDF materials for options.

◆ Anti-corrosive, especially for some special chemicals.

◆ The butterfly valve available size from 2'' to 8''.

◆ The turning speed of 90° rotation in 8 ~ 80 seconds.
